A Revolution in Die Registration
Insight Graphics Systems offer a free consultancy session to all print finishers who are part of the printmedia network.
During the session we shall discuss current press setup processes & how best to optimise them along with risk & exposures a business may
face & how to best mitigate them.
Book your appointment HERE for your personalised - 'A Revolution in Die Registration'
Founded in 1995, Insight Graphic Systems has grown to become a global leader in foil stamping and embossing optimisation. Our die positioning systems
support numerous installations across the world, significantly reducing their set-up times and improving production rates by up to 90%.
Press set up time is fast becoming the biggest bottleneck in the foil stamping and embossing industry as customer demands push producers more and
more towards short, multiple run jobs delivering just in time production By using our die positioning system- Die Co-Ordinator, set up times can be reduced by in
excess of 50% without the need to modify to presses, honeycombs, dies or hooks. This makes it the most cost-effective die positioning system on the market today.
Best of Award for
Post Press & Finishing
2017
Contact Insight Graphic Systems
Global SMPR Hub
(Marketing & Promotions) by:
Telephone : + 44 7770 762860
Facsimile : + 44 161 789 8787
insightgraphicsystems@printmediapartners.com
Contact - Danny Moloney
Find out more about
Insight Graphic Systems
Global SMPR Hub
United Kingdom
click on our logo below
to send us an email
Die Co-Ordinator
Hot Foil Stamping & Embossing Setup Die Registration
Partnerships
Over the years, we have been built up close relationships with leading foil and press manufacturers and have been heavily involved in the Kurz Prime Project which showcases the best new technologies to the foil stamping and embossing industry. Our success in the industry has led to invitations to present at European Carton Manufacturers Association’s annual congress and contribute to the Fo lding Carton Industry Magazine. To date more than 50 installations across the world have used our technology to cut their setup time by up to 65% and boost their production by up to 70%.
Centres of Excellence
Insight Graphics currently have 3 centres of excellence showcasing our technology. Here you can test drive our technology and witness first-hand the time savings benefits associated with our products as well as being able to speak with experienced operators.
Some quick facts: Around 75% of our customers are carton manufacturers or print finishers
Over 80% of the luxury packaging cartons in France with foil stamping or embossing are produced using our technology
Over 50 installations across the world use our press technology – visit our installations pages and see if one of our systems is running near you.
The major markets our customers serve are luxury packaging, chocolate, tobacco, greetings cards, book covers and labels.
.
Find out more about
Insight Graphic Systems
Global SMPR Hub
United Kingdom
click on our logo below
to send us an email
CONNECT Insight Graphic Systems
Die positioning systems
About Us
Founded in 1995, Insight Graphic Systems has grown to become a global leader in foil stamping and embossing optimisation. Our die positioning systems support
over 50 installations worldwide, significantly reducing set-up time and improving production rates by up to 70%.

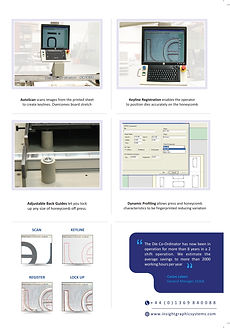

Die Co-Ordinator - Insight Graphic Systems
Streamline your die positioning and reduce overall setup by 50%
Die Co-Ordinator turbocharges your presses without the need for modification to presses, honeycombs, dies or hooks. This makes it the most cost-effective
die positioning system on the market today. Press set up time is fast becoming the biggest bottleneck in the foil stamping and embossing industry as customer
demands push producers more and more towards short, multiple run jobs delivering just in time production.
Benefits
Features
Program jobs in under 2 minutes with Point & Click
Eliminate mechanical variation with automatic calibration before every job
Repeatable, consistent movements accurate to 0.005 mm
Image magnification to 0.03 mm per pixel
Automatic compensation for board stretch and heat expansion
Pair Die Co-Ordinator with presses for life with its robust construction
Store over 100,000 jobs and recall a re-order in seconds
Use Die Co-Ordinator on all presses using adjustable guides
Use Die Co-Ordinator to improve your turnaround and maximise profits today.
Technical Specifications
Compatible Honeycombs
Gietz: FSA 1060, FSA 870, ROFO 870, FSA 790, FSA 720
Bobst: SP 76 BM, SP 126 BMA, SP 102 BMA, 1260, Masterfoil, FoilMaster, ExpertCut
Other: Iijima, Saroglia, Brausse, SBL, Kluge, MK
General
Voltage: 200-240V single phase, 110V USA
Dimensions (DC1060): 1.6m x 1.4m x 2m (5’4″ x 4’8″ x 6’6″)
Repeatability: 0.005mm (0.0002″)
Resolution: 0.03mm (0.0012″)
Illustrations, measurements and weights are subject to change.
The manufacturer reserves the right to make changes in design, equipment and accessories as deemed necessary.
